8-bit microcontroller featuring 7KB OTP memory and 192B RAM. Operates at up to 4MHz with an 8-bit data bus width and supports I2C, SPI, and USART/UART interfaces. Includes 3 timers/counters, 33 I/Os, and peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT. Packaged in a 44-pin QFP with an operating temperature range of -40°C to 85°C.
Frequency4MHz
PackageQFP
Quick Jump:
Technical Specifications
Microchip PIC16LC74B-04I/PQ technical specifications.
General
Access Time
4us
Package/Case
QFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
OTP
Min Operating Temperature
-40°C
Min Supply Voltage
3.65V
Number of I/Os
33
Number of Programmable I/O
33
Number of Timers/Counters
3
Oscillator Type
External
Package Quantity
96
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
192B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LC74B-04I/PQ Datasheet
Download the complete datasheet for Microchip PIC16LC74B-04I/PQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

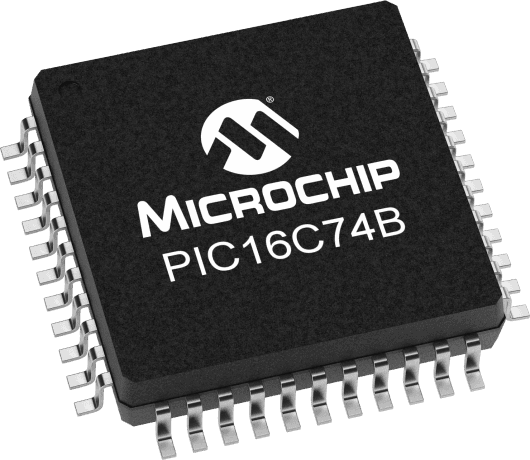

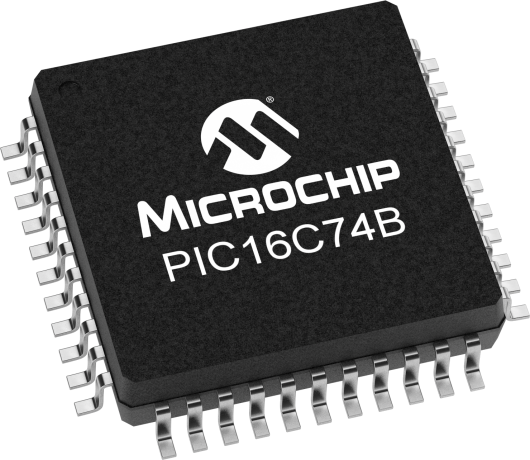

Product Images
