8-bit RISC microcontroller featuring a 4MHz clock speed and 14KB of OTP memory. This integrated circuit offers 33 programmable I/O pins, supporting I2C, SPI, and USART interfaces. Operating from 2.5V to 6V, it includes three timers/counters, a watchdog timer, and peripherals like Brown-out Detect/Reset and PWM. Packaged in a PLCC form factor, this lead-free and RoHS compliant component operates between 0°C and 70°C.
Frequency4MHz
PackagePLCC
Quick Jump:
Technical Specifications
Microchip PIC16LC77-04/L technical specifications.
General
Access Time
4us
Package/Case
PLCC
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
1W
Max Supply Voltage
6V
Memory Size
14KB
Memory Type
OTP
Min Supply Voltage
2.5V
Number of I/Os
33
Number of Programmable I/O
33
Number of Timers/Counters
3
Operating Supply Voltage
5.5V
Oscillator Type
External
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
368B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LC77-04/L Datasheet
Download the complete datasheet for Microchip PIC16LC77-04/L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

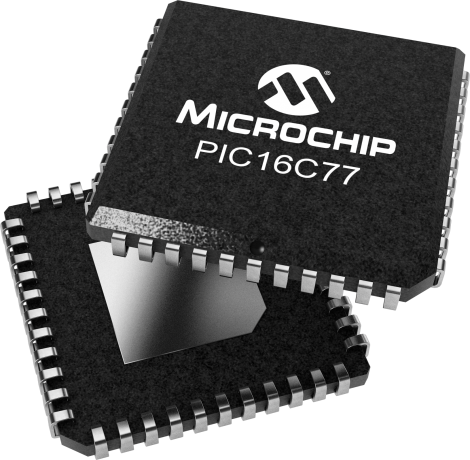

Product Images
