8-bit RISC microcontroller featuring an 8-bit data bus and a maximum operating frequency of 20MHz. This surface mount device offers 7KB of EPROM/OTP memory, 256B of RAM, and 33 programmable I/O pins. Integrated peripherals include I2C, SPI, UART, USART interfaces, 3 timers/counters, Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Operating within a supply voltage range of 4V to 5.5V, it supports a maximum operating temperature of 70°C.
Frequency20MHz
PackageQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LC774T/PQ technical specifications.
General
Access Time
20us
Package/Case
QFP
Core Architecture
PIC
Data Bus Width
8b
Interface
I2C, SPI, SSP, UART, USART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
70°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
EPROM, , OTP
Min Operating Temperature
0°C
Min Supply Voltage
4V
Mount
Surface Mount
Number of Programmable I/O
33
Number of Timers/Counters
3
Oscillator Type
External
Package Quantity
900
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LC774T/PQ Datasheet
Download the complete datasheet for Microchip PIC16LC774T/PQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

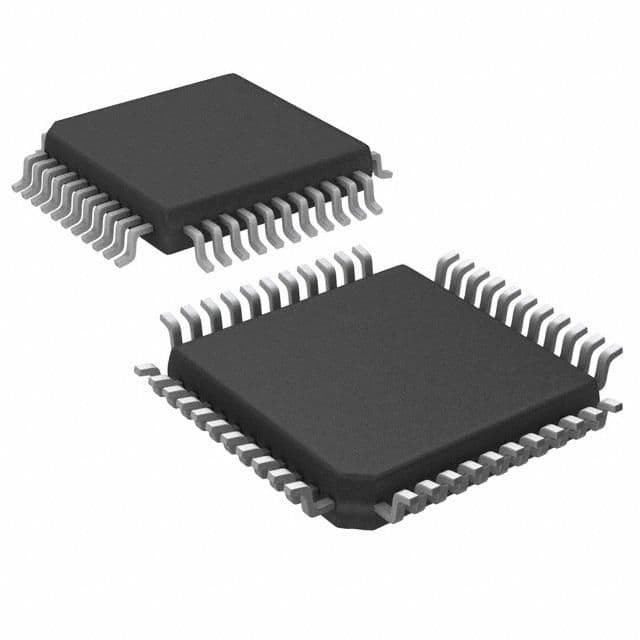

Product Images
