8-bit microcontroller (MCU) featuring 14KB OTP memory and 336B RAM. Operates at up to 20MHz with an 8-bit data bus width. Supports I2C and SPI interfaces, with 25 programmable I/Os and 3 timers/counters. Includes Brown-out Detect/Reset, POR, PWM, WDT, and LCD peripherals. Packaged in a 68-pin PLCC for surface mounting, with an operating temperature range of -40°C to 85°C and supply voltage from 2.5V to 5.5V.
Frequency20MHz
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LC926-I/L technical specifications.
General
Access Time
20us
Package/Case
PLCC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
EPROM, , OTP
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of I/Os
25
Number of Programmable I/O
25
Number of Timers/Counters
3
Oscillator Type
External
Package Quantity
19
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD
Radiation Hardening
No
RAM Size
336B
RoHS Compliant
Yes
Series
PIC® 16C
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LC926-I/L Datasheet
Download the complete datasheet for Microchip PIC16LC926-I/L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

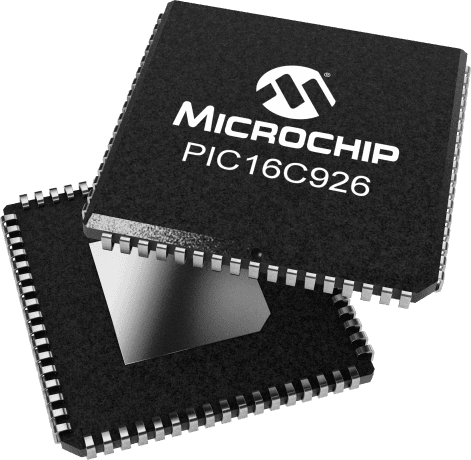

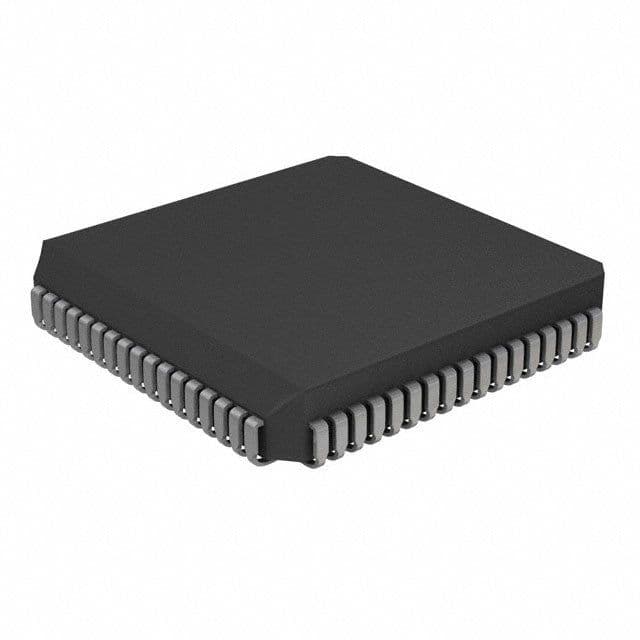

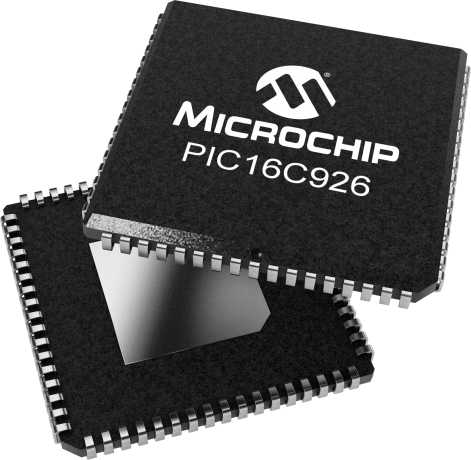

Product Images
