8-bit RISC Flash Microcontroller operating at up to 20MHz. Features 7KB Flash memory, 256B RAM, and 17 programmable I/O pins. Integrated peripherals include 12-channel ADC, 4 PWM channels, 3 timers, I2C, SPI, and UART/USART interfaces. Operates from 1.8V to 3.6V supply, with a temperature range of -40°C to 85°C. Packaged in a 20-pin SOIC (7.50mm width).
Frequency20MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16LF1508-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
2.05mm
Interface
I2C, SPI, UART, USART, LIN
Lead Free
Lead Free
Length
12.8mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
7KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of ADC Channels
12
Number of I/Os
17
Number of I2C Channels
1
Number of Programmable I/O
17
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1508-I/SO Datasheet
Download the complete datasheet for Microchip PIC16LF1508-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

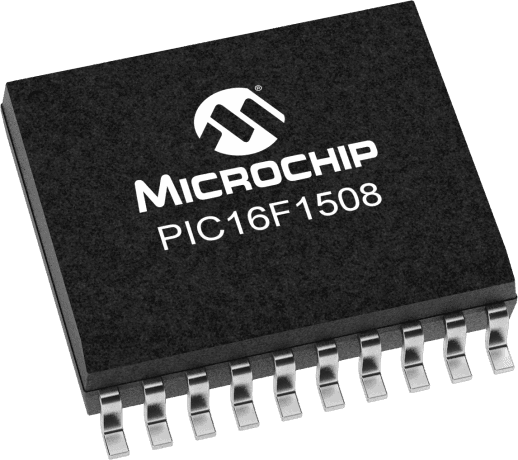

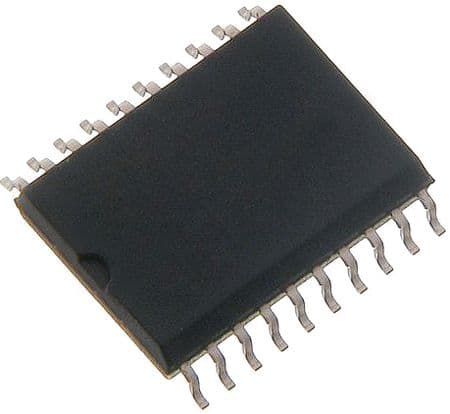

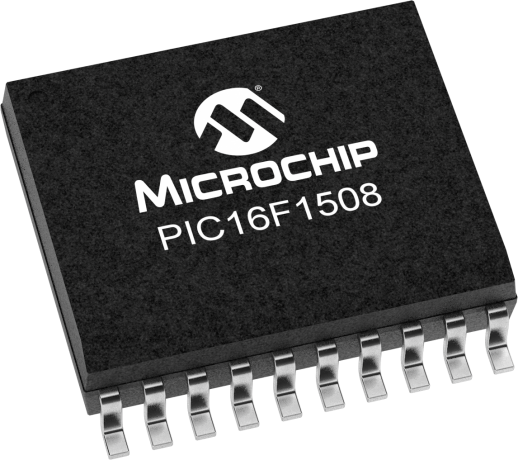

Product Images
