8-bit RISC Flash Microcontroller, operating at up to 20MHz. Features 14KB Flash memory, 512B RAM, and 17 programmable I/Os. Integrated peripherals include I2C, SPI, UART, USART, LIN interfaces, 12 ADC channels, and 4 PWM channels. Operates from 1.8V to 3.6V supply, with a temperature range of -40°C to 125°C. Packaged in a 4x4mm QFN with 0.95mm height, this lead-free component offers 3 timers and a watchdog timer.
Frequency20MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC16LF1509-E/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.95mm
Interface
I2C, SPI, UART, USART, LIN
Lead Free
Lead Free
Length
4mm
Max Frequency
20MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
14KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of ADC Channels
12
Number of I/Os
17
Number of I2C Channels
1
Number of Programmable I/O
17
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1509-E/ML Datasheet
Download the complete datasheet for Microchip PIC16LF1509-E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

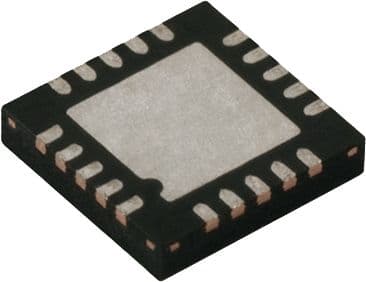

Product Images
