8-bit RISC microcontroller featuring 20MHz operation, 14KB FLASH memory, and 512B RAM. This integrated circuit offers 24 I/Os, including 25 programmable I/O pins, with support for I2C, SPI, and UART interfaces. It includes multiple peripherals such as Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Operating from 2.5V to 3.6V, this lead-free component is housed in a 28-pin SSOP package.
Frequency20MHz
PackageSSOP
Current118uA
Quick Jump:
Technical Specifications
Microchip PIC16LF1516-I/SS technical specifications.
General
Address Bus Width
8b
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.073inch
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Length
0.413inch
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
14KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Number of A/D Converters
1
Number of ADC Channels
17
Number of Bits
8
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
118uA
Watchdog Timer
Yes
Width
0.22inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1516-I/SS Datasheet
Download the complete datasheet for Microchip PIC16LF1516-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

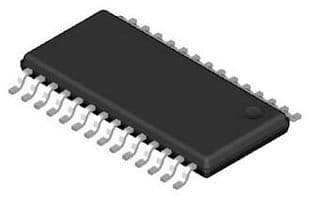

Product Images
