8-bit RISC Flash Microcontroller, operating at up to 20MHz, featuring an 8b data bus and 768B RAM. This microcontroller offers 14KB of FLASH memory and supports I2C, SPI, and UART/USART interfaces. With 53 programmable I/Os, 9 timers/counters, and integrated peripherals including PWM and WDT, it operates from 2.5V to 3.6V with a maximum power dissipation of 800mW. Encased in a VQFN package, it functions across an extended temperature range of -40°C to 125°C and is RoHS compliant.
Frequency20MHz
PackageVQFN
Quick Jump:
Technical Specifications
Microchip PIC16LF1526-E/MR technical specifications.
General
| Package/Case | VQFN |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Interface | I2C, SPI, UART, USART |
| Max Frequency | 20MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 3.6V |
| Memory Size | 14KB |
| Memory Type | FLASH |
| Min Supply Voltage | 2.5V |
| Number of I/Os | 53 |
| Number of Programmable I/O | 53 |
| Number of Timers/Counters | 9 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | Internal |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 768B |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 16F |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16LF1526-E/MR Datasheet
Download the complete datasheet for Microchip PIC16LF1526-E/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

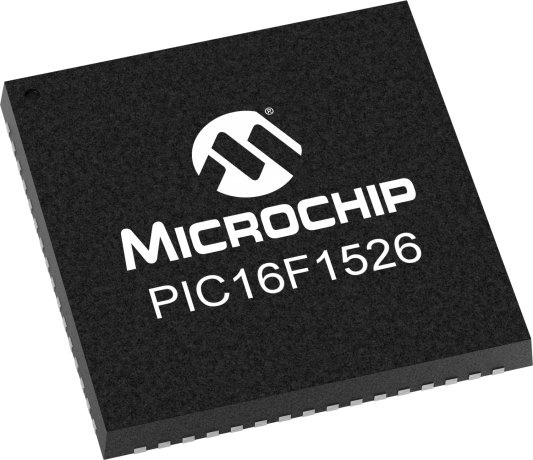

Product Images
