8-bit PIC microcontroller featuring 7KB FLASH memory and 256B RAM. Operates at up to 32MHz with an 8-bit data bus width. Offers 11 ADC channels and 12 programmable I/Os, supporting I2C, SPI, and USART/UART interfaces. Includes 3 timers/counters, internal oscillator, and peripherals like Brown-out Detect, POR, PWM, and WDT. Packaged in a TSSOP for operation between -40°C and 85°C, with a supply voltage range of 1.8V to 3.6V.
Frequency32MHz
PackageTSSOP
Quick Jump:
Technical Specifications
Microchip PIC16LF1554T-I/ST technical specifications.
General
| Package/Case | TSSOP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Interface | I2C, SPI, USART, UART |
| Lead Free | Lead Free |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 7KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.8V |
| Number of ADC Channels | 11 |
| Number of I/Os | 11 |
| Number of Programmable I/O | 12 |
| Number of Timers/Counters | 3 |
| Oscillator Type | Internal |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RAM Size | 256B |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 16F |
| Watchdog Timer | Yes |
| Weight | 0.004949oz |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16LF1554T-I/ST Datasheet
Download the complete datasheet for Microchip PIC16LF1554T-I/ST to view detailed technical specifications.
No datasheet is available for this part.

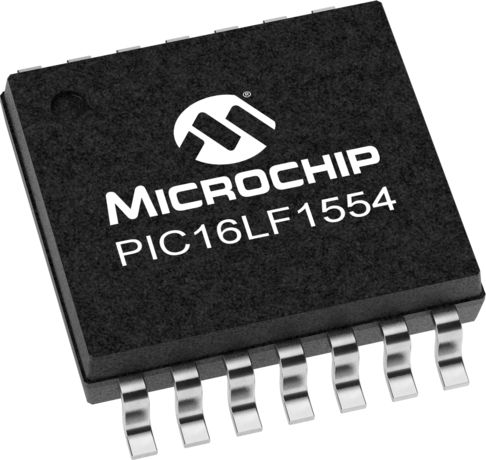

Product Images
