8-bit PIC microcontroller featuring 14KB FLASH memory and 512B RAM. Operates at up to 32MHz with 17 ADC channels and 18 programmable I/Os. Supports I2C, SPI, and USART/UART interfaces, with integrated peripherals including Brown-out Detect, POR, PWM, and WDT. Housed in an SSOP package for surface mounting, this RoHS compliant component functions across a -40°C to 125°C temperature range with a supply voltage of 1.8V to 3.6V.
Frequency32MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF1559-E/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Interface
I2C, SPI, USART, UART
Max Frequency
32MHz
Max Operating Temperature
125°C
Memory Size
14KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of ADC Channels
17
Number of I/Os
17
Number of Programmable I/O
18
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
67
Packaging
Bulk
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Weight
0.016oz
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1559-E/SS Datasheet
Download the complete datasheet for Microchip PIC16LF1559-E/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

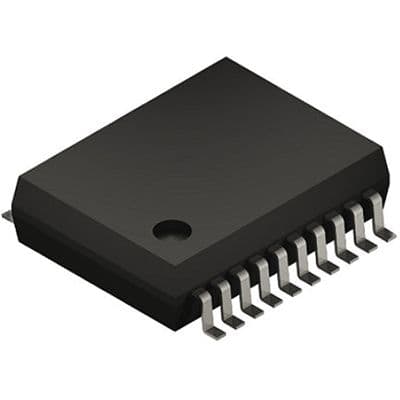

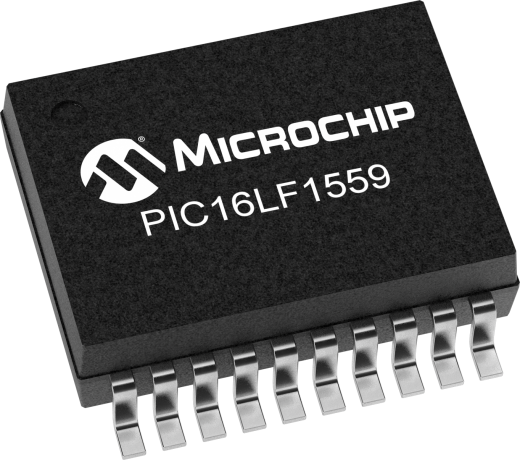

Product Images
