Technical Specifications
Microchip PIC16LF1704-E/SL technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Interface
I2C, SPI, UART, USART, RS-232, LIN
Max Frequency
32MHz
Max Operating Temperature
125°C
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of I/Os
12
Number of Programmable I/O
12
Number of Timers/Counters
5
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
57
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1704-E/SL Datasheet
Download the complete datasheet for Microchip PIC16LF1704-E/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

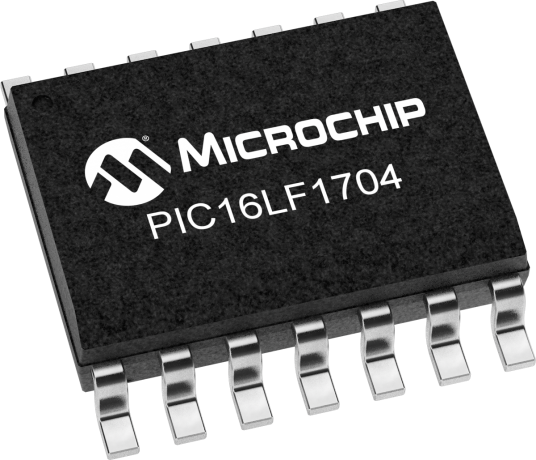

Product Images
