8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 32MHz. This SOIC-packaged device offers 7KB of FLASH memory and 512B of RAM, with 12 programmable I/O pins. Integrated peripherals include I2C, SPI, UART, USART, RS-232, LIN interfaces, 8 ADC channels, and 2 PWM channels. Operating from 1.8V to 3.6V, it supports an extended temperature range of -40°C to 85°C.
Frequency32MHz
PackageSOIC
Current8uA
Quick Jump:
Technical Specifications
Microchip PIC16LF1704-I/SL technical specifications.
General
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
1.5mm
Interface
I2C, SPI, UART, USART, RS-232, LIN
Length
8.65mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of ADC Channels
8
Number of I/Os
12
Number of I2C Channels
1
Number of Programmable I/O
12
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
1
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
57
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
8uA
Watchdog Timer
Yes
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1704-I/SL Datasheet
Download the complete datasheet for Microchip PIC16LF1704-I/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

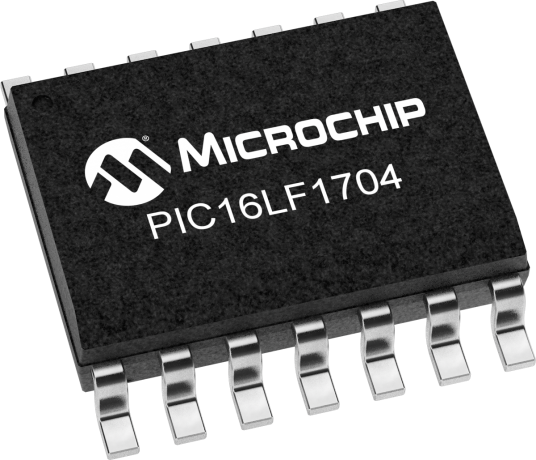

Product Images
