8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 32MHz with an internal oscillator. This surface mount device offers 28KB of FLASH memory, 2KB of RAM, and 24 I/O pins. Integrated peripherals include I2C, SPI, UART, USART interfaces, 17 ADC channels, and 5 timers/counters. Designed for a wide operating temperature range of -40°C to 85°C, it supports supply voltages from 2.5V to 5.5V.
Frequency16MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF1718-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
16MHz
Interface
I2C, SPI, UART, USART
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
28KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of ADC Channels
17
Number of I/Os
24
Number of Timers/Counters
5
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
2KB
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Weight
0.080001oz
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1718-I/SS Datasheet
Download the complete datasheet for Microchip PIC16LF1718-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

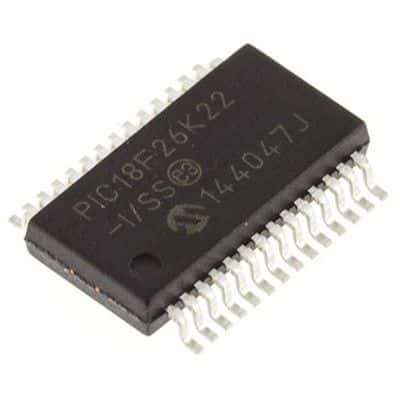

Product Images
