8-bit RISC Flash Microcontroller, operating at up to 32MHz. Features 7KB Flash memory, 512B RAM, and 24 I/O pins. Includes I2C, SPI, and UART interfaces, along with 11 ADC channels and 2 PWM channels. Packaged in a 28-pin PDIP with a 0.300-inch width, this lead-free component operates from 1.8V to 3.6V and has a temperature range of -40°C to 85°C.
Frequency32MHz
PackageDIP
Current125uA
Quick Jump:
Technical Specifications
Microchip PIC16LF1783-I/SP technical specifications.
General
Address Bus Width
8b
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.15inch
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
35.56mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
7KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of ADC Channels
11
Number of I/Os
24
Number of Programmable I/O
25
Number of PWM Channels
2
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
125uA
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1783-I/SP Datasheet
Download the complete datasheet for Microchip PIC16LF1783-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

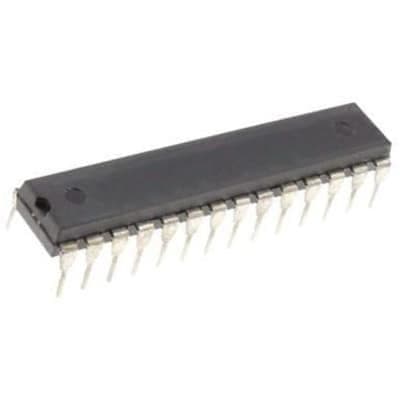

Product Images
