8-bit RISC Flash Microcontroller, operating at up to 32MHz, featuring 7KB of FLASH memory and 512B of RAM. This microcontroller offers 11 ADC channels, 2 PWM channels, and 3 timers/counters, with I2C, SPI, and UART interfaces. It supports a supply voltage range of 1.8V to 3.6V and operates from -40°C to 85°C, housed in a lead-free SSOP-28 package. Integrated peripherals include Brown-out Detect/Reset, POR, WDT, and I2C.
Frequency32MHz
PackageSSOP
Current125uA
Quick Jump:
Technical Specifications
Microchip PIC16LF1783-I/SS technical specifications.
General
Address Bus Width
8b
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
1.85mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
10.5mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
7KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of ADC Channels
11
Number of I/Os
24
Number of Programmable I/O
25
Number of PWM Channels
2
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
125uA
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1783-I/SS Datasheet
Download the complete datasheet for Microchip PIC16LF1783-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

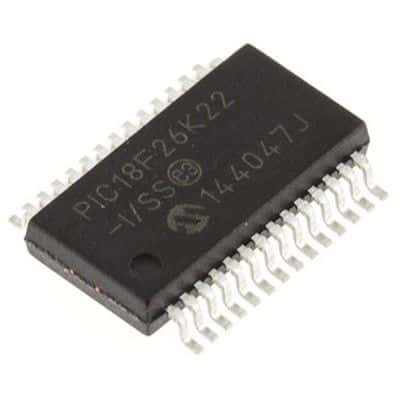

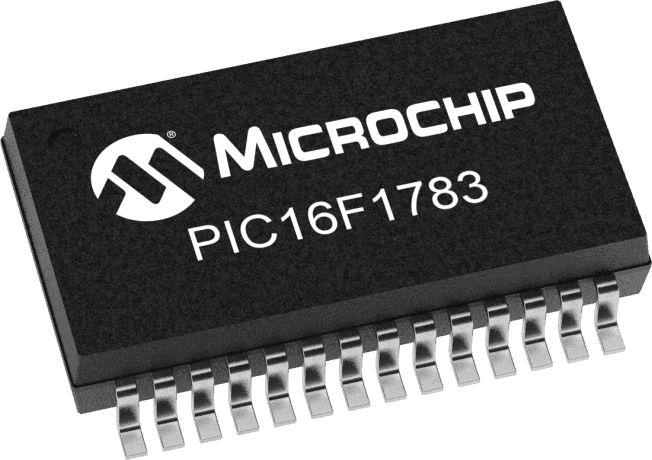

Product Images
