8-bit RISC Flash Microcontroller featuring an 8b data bus, operating at up to 32MHz. This integrated circuit offers 3.5KB of FLASH memory and 128B of RAM, with 11 general-purpose I/Os and 12 programmable I/Os. Connectivity includes I2C, SPI, and USART/UART interfaces, alongside 3 timers/counters and an internal oscillator. Designed for a supply voltage range of 2.3V to 3.6V, it operates from -40°C to 125°C and includes peripherals such as Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer.
Frequency32MHz
PackageVQFN
Quick Jump:
Technical Specifications
Microchip PIC16LF1823-E/ML technical specifications.
General
Package/Case
VQFN
Core Architecture
PIC
Data Bus Width
8b
Height
0.037inch
Interface
I2C, SPI, USART, UART
Length
0.157inch
Max Frequency
32MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
3.5KB
Memory Type
FLASH
Min Supply Voltage
2.3V
Number of A/D Converters
1
Number of Bits
8
Number of I/Os
11
Number of Programmable I/O
12
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Width
0.157inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1823-E/ML Datasheet
Download the complete datasheet for Microchip PIC16LF1823-E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

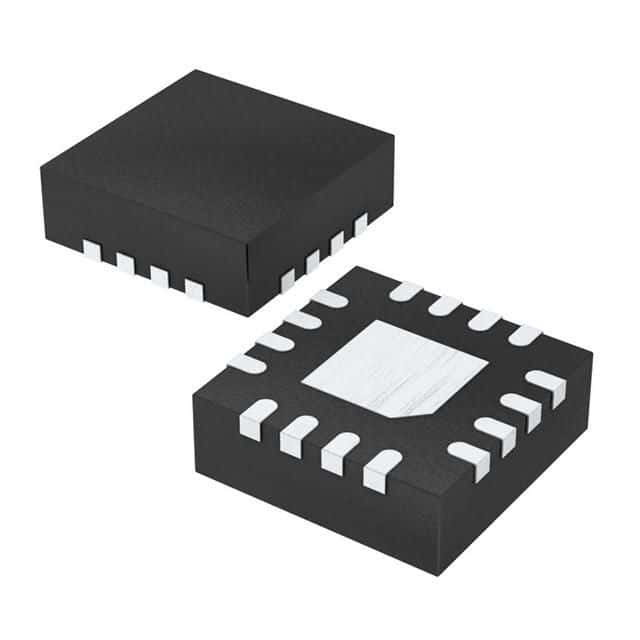

Product Images
