8-bit RISC microcontroller featuring 32MHz clock speed and 3.5KB FLASH memory. This PIC microcontroller offers 128B RAM, 11 I/Os, and supports I2C, SPI, and USART interfaces. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, and WDT. Operates from 2.3V to 3.6V supply voltage within a -40°C to 85°C temperature range. Packaged in a 14-pin TSSOP.
Frequency32MHz
PackageTSSOP
Quick Jump:
Technical Specifications
Microchip PIC16LF1823-I/ST technical specifications.
General
Package/Case
TSSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
1.05mm
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Length
5.1mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
3.5KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Number of ADC Channels
8
Number of I/Os
11
Number of I2C Channels
1
Number of Programmable I/O
12
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
3
Number of USB Channels
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1823-I/ST Datasheet
Download the complete datasheet for Microchip PIC16LF1823-I/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

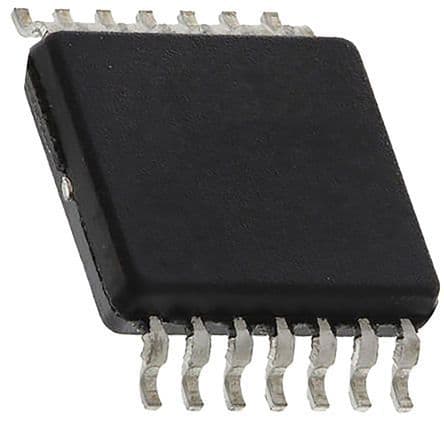

Product Images
