8-bit RISC Flash Microcontroller, operating at up to 32MHz. Features 3.5KB Flash memory, 128B RAM, and 11 I/O pins. Supports I2C, SPI, USART, UART, and LIN interfaces. Includes 3 timers/counters, internal oscillator, and peripherals like PWM and WDT. Packaged in a 14-pin SOIC, with an operating temperature range of -40°C to 85°C.
Frequency32MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16LF1823T-I/SL technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Interface
I2C, SPI, USART, UART, LIN
Lead Free
Lead Free
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
3.5KB
Memory Type
FLASH
Min Supply Voltage
2.3V
Number of I/Os
11
Number of Programmable I/O
12
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1823T-I/SL Datasheet
Download the complete datasheet for Microchip PIC16LF1823T-I/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

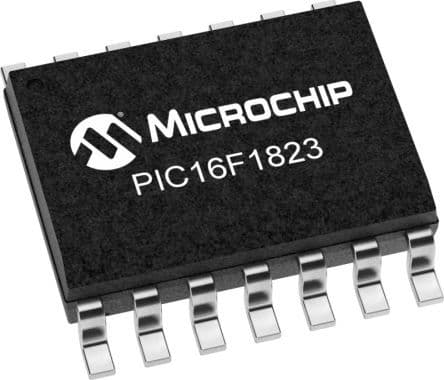

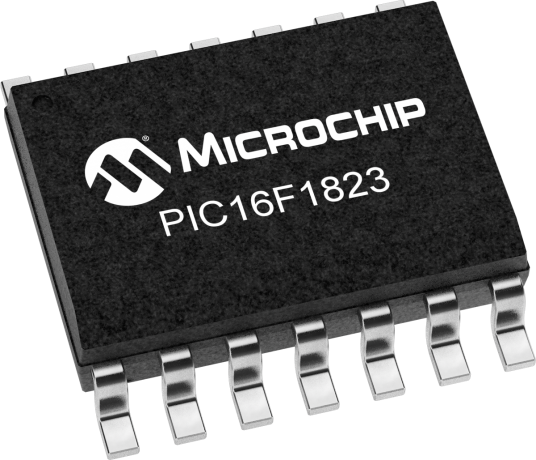

Product Images
