8-bit RISC Flash Microcontroller, operating at 32MHz. Features 7KB Flash memory, 256B RAM, and 11 programmable I/Os. Supports I2C, SPI, and UART/USART interfaces, with 8 ADC channels and 4 PWM channels. Operates from 2.3V to 3.6V, with a temperature range of -40°C to 85°C. Packaged in a 14-pin TSSOP.
Frequency32MHz
PackageTSSOP
Quick Jump:
Technical Specifications
Microchip PIC16LF1824-I/ST technical specifications.
General
Package/Case
TSSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
1mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
5mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
7KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Number of ADC Channels
8
Number of I/Os
11
Number of I2C Channels
1
Number of Programmable I/O
11
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
5
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ mTouch™ 16F
Watchdog Timer
Yes
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1824-I/ST Datasheet
Download the complete datasheet for Microchip PIC16LF1824-I/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

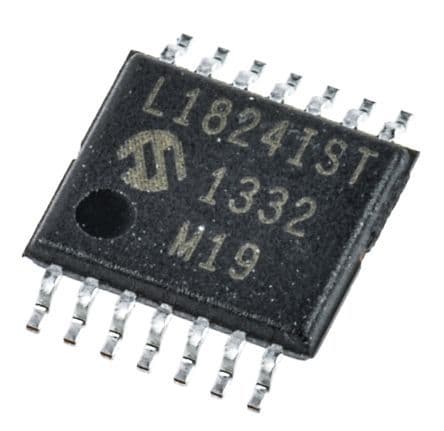

Product Images
