8-bit RISC Flash Microcontroller operating at 32MHz. Features 3.5KB Flash memory, 256B RAM, and 15 I/Os with 16 programmable I/O pins. Includes I2C, SPI, and UART interfaces, 12-channel ADC, and 3 timers. Operates from 2.5V to 3.6V supply voltage with a temperature range of -40°C to 85°C. Packaged in a 28-pin UQFN with 0.5mm height.
Frequency32MHz
Current430uA
Quick Jump:
Technical Specifications
Microchip PIC16LF1826-I/MV technical specifications.
General
| Address Bus Width | 8b |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 32MHz |
| Height | 0.5mm |
| Interface | I2C, SPI, USART, UART |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 3.6V |
| Memory Size | 3.5KB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.5V |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 12 |
| Number of Bits | 8 |
| Number of I/Os | 15 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 16 |
| Number of PWM Channels | 1 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 1 |
| Oscillator Type | Internal |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, I2C |
| Radiation Hardening | No |
| RAM Size | 256B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ mTouch™ 16F |
| Supply Current | 430uA |
| Termination | SMD/SMT |
| Watchdog Timer | Yes |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16LF1826-I/MV Datasheet
Download the complete datasheet for Microchip PIC16LF1826-I/MV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

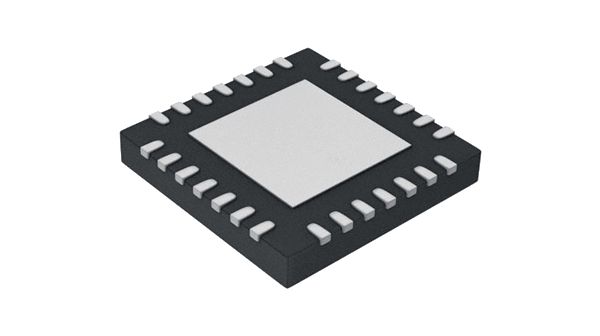

Product Images
