8-bit RISC microcontroller featuring 32MHz operation and 7KB FLASH memory. This PIC microcontroller offers 15 I/Os, including 16 programmable I/Os, and supports I2C, SPI, and UART interfaces. Integrated peripherals include 4 PWM channels, 5 timers/counters, and a watchdog timer. Operating from 1.8V to 3.6V, it boasts a 12-channel ADC and operates within a -40°C to 85°C temperature range. Packaged in a 6x6mm QFN, this lead-free component is RoHS compliant.
Frequency32MHz
PackageQFN
Current430uA
Quick Jump:
Technical Specifications
Microchip PIC16LF1827-I/ML technical specifications.
General
Address Bus Width
8b
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.95mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
6mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
7KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of A/D Converters
1
Number of ADC Channels
12
Number of Bits
8
Number of I/Os
15
Number of I2C Channels
2
Number of Programmable I/O
16
Number of PWM Channels
4
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
384B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ mTouch™ 16F
Supply Current
430uA
Termination
SMD/SMT
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1827-I/ML Datasheet
Download the complete datasheet for Microchip PIC16LF1827-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

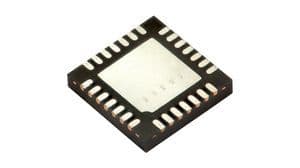

Product Images
