8-bit RISC microcontroller featuring 32MHz operation and 14KB FLASH memory. This surface mount device offers 36 I/Os, including 35 programmable, and supports SPI, I2C, and UART interfaces. Integrated peripherals include 5 timers/counters, PWM, WDT, and LCD driver capabilities, with a wide operating temperature range of -40°C to 125°C. Operates from 1.8V to 3.6V supply voltage.
Frequency32MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF1937-E/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Interface
SPI, I2C, UART, USART
Max Frequency
32kHz
Max Operating Temperature
125°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
14KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of I/Os
36
Number of Programmable I/O
35
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
45
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1937-E/ML Datasheet
Download the complete datasheet for Microchip PIC16LF1937-E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

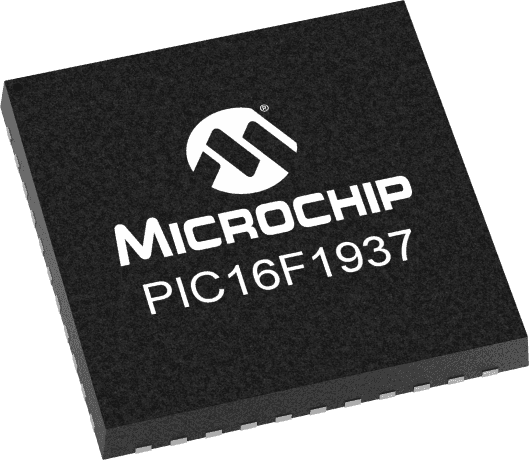

Product Images
