8-bit RISC Flash Microcontroller, operating at up to 32MHz. Features 28KB Flash memory, 1KB RAM, and 35 I/O pins. Includes 14 ADC channels, 5 PWM channels, and 5 timers. Supports SPI, I2C, UART, and LIN interfaces. Packaged in a 44-pin QFN (8x8mm) with a temperature range of -40°C to 85°C.
Frequency32MHz
PackageQFN
Current450uA
Quick Jump:
Technical Specifications
Microchip PIC16LF1939-I/ML technical specifications.
General
Address Bus Width
8b
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.95mm
Interface
SPI, I2C, UART, USART, LIN
Lead Free
Lead Free
Length
8mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
28KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of ADC Channels
14
Number of I/Os
35
Number of I2C Channels
1
Number of Programmable I/O
36
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
45
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD, I2C
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
450uA
Termination
SMD/SMT
Watchdog Timer
Yes
Width
8mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1939-I/ML Datasheet
Download the complete datasheet for Microchip PIC16LF1939-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

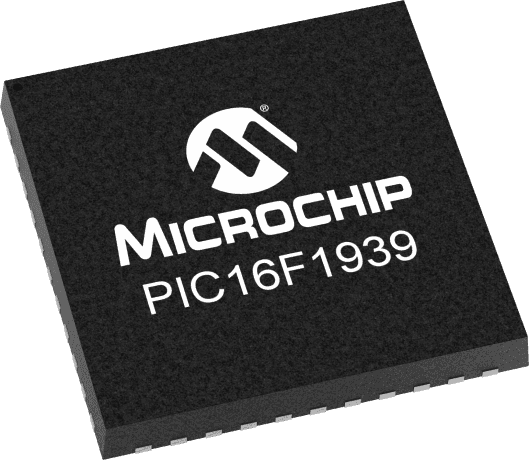

Product Images
