8-bit RISC microcontroller featuring 32MHz operation and 28KB FLASH memory. This QFN-packaged IC offers 53 I/Os, including 54 programmable, with support for SPI, I2C, UART, USART, and LIN interfaces. Integrated peripherals include 17 ADC channels, 5 PWM channels, 5 timers, and a watchdog timer, operating from 2.3V to 3.6V. Designed for a wide temperature range of -40°C to 85°C, this lead-free component is RoHS compliant.
Frequency32MHz
PackageQFN
Current240uA
Quick Jump:
Technical Specifications
Microchip PIC16LF1947-I/MR technical specifications.
General
| Address Bus Width | 8b |
| Package/Case | QFN |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 32MHz |
| Height | 0.95mm |
| Interface | SPI, I2C, UART, USART, LIN |
| Lead Free | Lead Free |
| Length | 9mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 3.6V |
| Memory Size | 28KB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.3V |
| Number of ADC Channels | 17 |
| Number of I/Os | 53 |
| Number of I2C Channels | 2 |
| Number of Programmable I/O | 54 |
| Number of PWM Channels | 5 |
| Number of Timers/Counters | 5 |
| Oscillator Type | Internal |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, LCD, I2C |
| Radiation Hardening | No |
| RAM Size | 1KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 16F |
| Supply Current | 240uA |
| Watchdog Timer | Yes |
| Width | 9mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16LF1947-I/MR Datasheet
Download the complete datasheet for Microchip PIC16LF1947-I/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

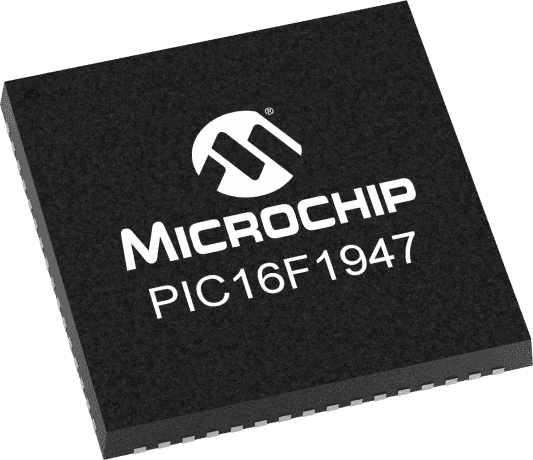

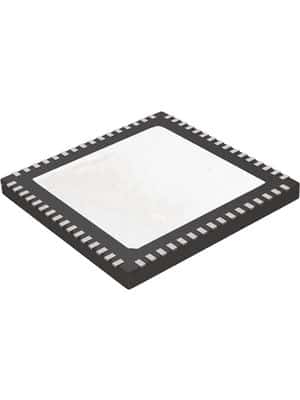

Product Images
