8-bit RISC microcontroller featuring 4MHz operation and 1.75KB FLASH memory. This integrated circuit offers 224B RAM, 16 programmable I/Os, and three timers/counters. Includes internal oscillator, USART/SCI/UART interface, and peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT. Packaged in an 18-pin PDIP, it operates from 2V to 5.5V with a maximum power dissipation of 800mW.
Frequency4MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16LF627-04/P technical specifications.
General
Access Time
4us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Interface
USART, SCI, UART
Max Frequency
4MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
1.75KB
Memory Type
FLASH
Min Supply Voltage
2V
Number of I/Os
16
Number of Programmable I/O
16
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
25
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
224B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF627-04/P Datasheet
Download the complete datasheet for Microchip PIC16LF627-04/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

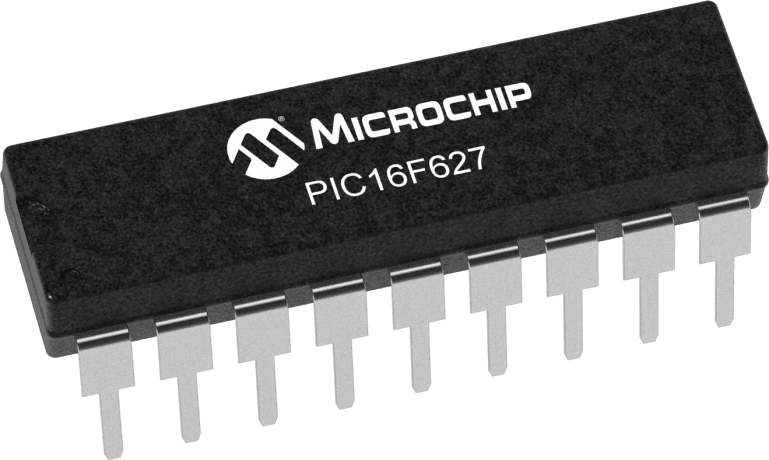

Product Images
