8-bit RISC microcontroller featuring 4MHz clock speed and 1.75KB FLASH memory. Offers 224B RAM, 16 programmable I/Os, and 3 timers/counters. Includes USART, SCI, and UART interfaces, with peripherals like Brown-out Detect, POR, PWM, and WDT. Operates from 2V to 5.5V supply, with a temperature range of -40°C to 85°C. Packaged in a 18-pin PDIP.
Frequency4MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16LF627-04I/P technical specifications.
General
Access Time
4us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Interface
USART, SCI, UART
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
1.75KB
Memory Type
FLASH
Min Supply Voltage
2V
Number of I/Os
16
Number of Programmable I/O
16
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
25
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
224B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF627-04I/P Datasheet
Download the complete datasheet for Microchip PIC16LF627-04I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

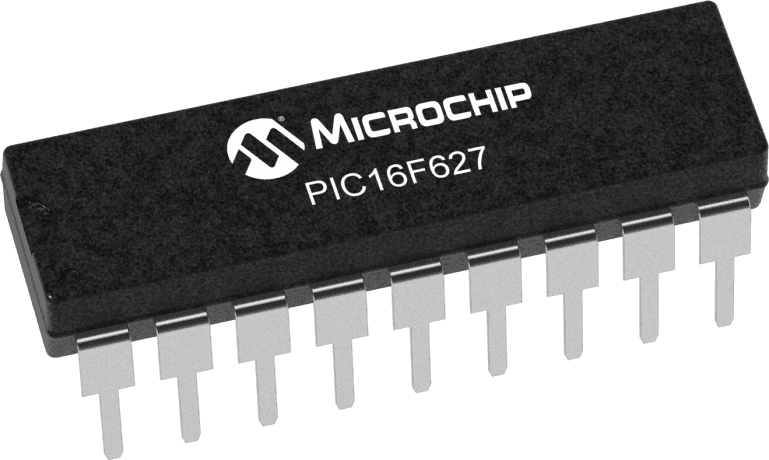

Product Images
