8-bit FLASH microcontroller featuring an 8b data bus width and 20MHz core frequency. This surface mount device offers I2C, SPI, SCI, UART, and USART interfaces, with 25 programmable I/O pins and 3 timers/counters. Operating from 2.3V to 3.6V, it includes internal oscillator, Brown-out Detect/Reset, POR, PWM, and WDT peripherals. With 3.5KB of FLASH memory and 128B of RAM, this RoHS compliant component is packaged in SSOP-28 for tape and reel distribution.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF722T-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, SCI, UART, USART
Max Frequency
32kHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
3.5KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of Programmable I/O
25
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
2100
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF722T-I/SS Datasheet
Download the complete datasheet for Microchip PIC16LF722T-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

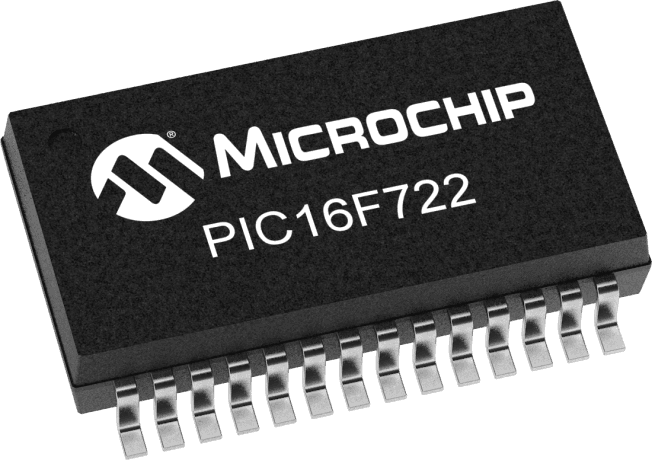

Product Images
