8-bit RISC microcontroller featuring 7KB FLASH memory and 192B RAM. Operates at a maximum frequency of 20MHz with a supply voltage range of 2.5V to 3.6V. Offers 24 I/O pins, including 25 programmable I/O, and supports I2C, SPI, USART, and UART interfaces. Includes 11 A/D converter channels, 2 PWM channels, 3 timers/counters, and a watchdog timer. Packaged in a 28-pin VQFN (6x6mm) with an operating temperature range of -40°C to 85°C.
Frequency20MHz
PackageVQFN
Quick Jump:
Technical Specifications
Microchip PIC16LF723AT-I/ML technical specifications.
General
Package/Case
VQFN
Core Architecture
PIC
Data Bus Width
8b
Height
0.95mm
Interface
I2C, SPI, USART, UART
Length
6mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
7KB
Memory Type
FLASH
Min Supply Voltage
2.5V
Number of A/D Converters
1
Number of ADC Channels
11
Number of Bits
8
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Number of USB Channels
1
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
192B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF723AT-I/ML Datasheet
Download the complete datasheet for Microchip PIC16LF723AT-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

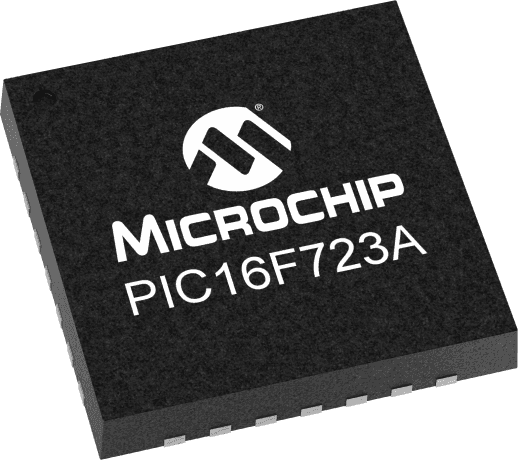

Product Images
