8-bit RISC microcontroller featuring 1.75KB FLASH memory and 128B RAM. Operates at up to 20MHz with an 8-bit data bus. Supports I2C, SPI, and SSP interfaces, with 16 programmable I/Os and 5 analog input channels. Includes peripherals like Brown-out Detect/Reset, POR, PWM, and WDT. Packaged in a 0.300-inch SOIC (PDSO18) for surface mounting, operating from 2V to 5.5V.
Frequency20MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF818-I/SO technical specifications.
General
Access Time
20us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
2.39mm
Interface
I2C, SPI, SSP
Lead Free
Lead Free
Length
11.73mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
1.75KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
5
Number of Bits
8
Number of I/Os
16
Number of I2C Channels
1
Number of Programmable I/O
16
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
42
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Width
7.59mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF818-I/SO Datasheet
Download the complete datasheet for Microchip PIC16LF818-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

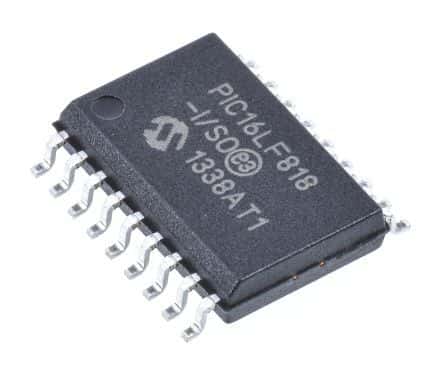

Product Images
