8-bit RISC microcontroller featuring 1.75KB FLASH memory and 128B RAM. Operates at up to 20MHz with 16 programmable I/O pins and three timers/counters. Supports I2C, SPI, and SSP interfaces. Packaged in a 0.300-inch SOIC for surface mounting, with an operating temperature range of -40°C to 85°C. RoHS compliant and lead-free.
Frequency20MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF818T-I/SO technical specifications.
General
Access Time
20us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, SSP
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
1.75KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of Programmable I/O
16
Number of Timers/Counters
3
Package Quantity
1100
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF818T-I/SO Datasheet
Download the complete datasheet for Microchip PIC16LF818T-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

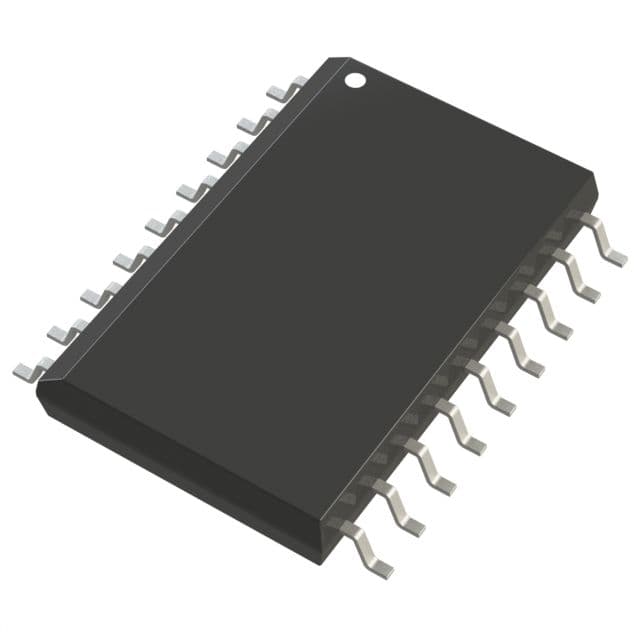

Product Images
