8-bit RISC microcontroller featuring 1.75KB FLASH memory and 68B RAM. Operates at up to 4MHz with an 8-bit data bus. Offers 13 programmable I/O pins and includes POR and WDT peripherals. Packaged in a lead-free PDIP-18 through-hole mount.
Frequency4MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16LF84A-04/P technical specifications.
General
Access Time
4us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Density
1.75KB
Frequency
4MHz
Height
3.68mm
Lead Free
Lead Free
Length
22.99mm
Max Frequency
4MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
1.75KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Through Hole
Number of Bits
8
Number of I/Os
13
Number of Programmable I/O
13
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
25
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
68B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Termination
Through Hole
Watchdog Timer
Yes
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF84A-04/P Datasheet
Download the complete datasheet for Microchip PIC16LF84A-04/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

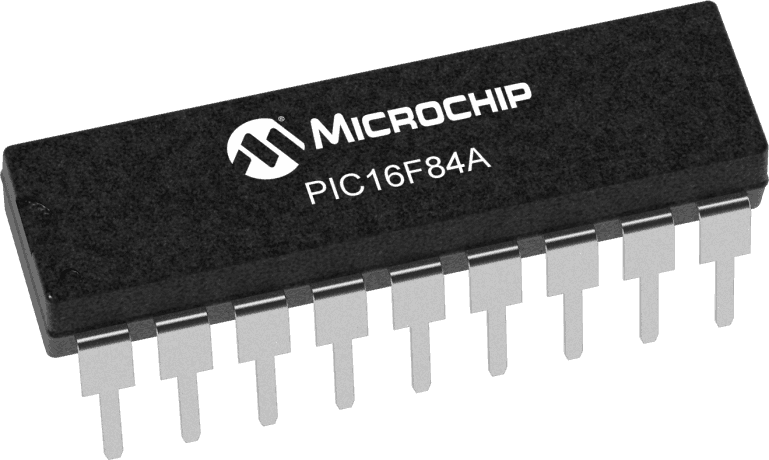

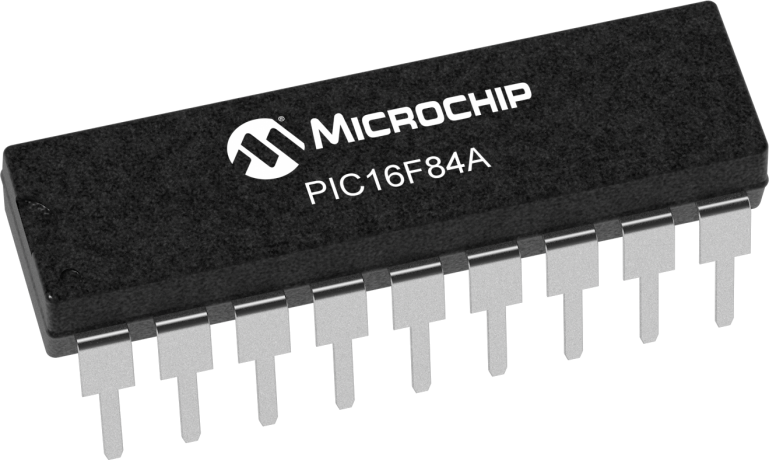

Product Images
