8-bit RISC microcontroller featuring 20MHz operation and 3.5KB FLASH memory. This surface-mount device offers 22 programmable I/O pins, 3 timers/counters, and a single PWM channel. It supports external oscillators and includes USART/UART interfaces. Operating from 2V to 5.5V, it functions within a -40°C to 85°C temperature range and is RoHS compliant.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF870-I/SS technical specifications.
General
| Access Time | 4us |
| Package/Case | SSOP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Interface | USART, UART |
| Lead Free | Lead Free |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Memory Size | 3.5KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of I/Os | 22 |
| Number of Programmable I/O | 22 |
| Number of PWM Channels | 1 |
| Number of Timers/Counters | 3 |
| Oscillator Type | External |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 128B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® 16F |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16LF870-I/SS Datasheet
Download the complete datasheet for Microchip PIC16LF870-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

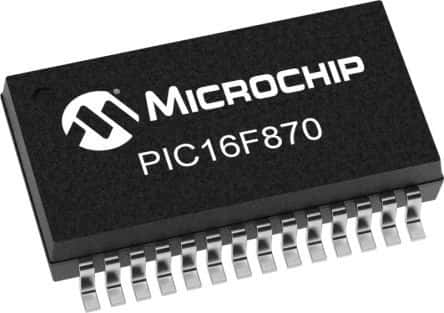

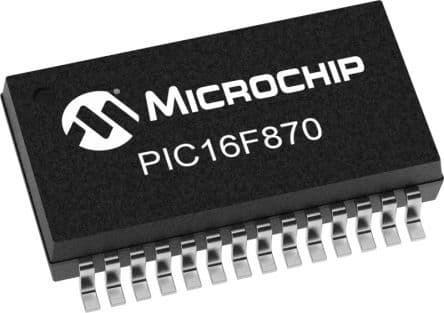

Product Images
