8-bit RISC Flash Microcontroller, operating at up to 20MHz. Features 7.2KB Flash memory, 192B RAM, and 22 programmable I/O pins. Supports I2C, SPI, and USART/UART interfaces, with 3 timers/counters and a watchdog timer. Includes Brown-out Detect/Reset and POR peripherals. Packaged in a QFN surface-mount case, operating from 2V to 5.5V supply voltage, with a temperature range of -40°C to 85°C.
Frequency20MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF873A-I/ML technical specifications.
General
Access Time
4us
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
7.2KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of Programmable I/O
22
Number of Timers/Counters
3
Oscillator Type
External
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
192B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF873A-I/ML Datasheet
Download the complete datasheet for Microchip PIC16LF873A-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

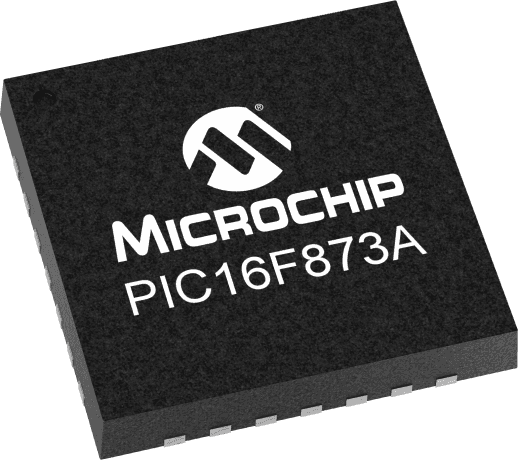

Product Images
