8-bit RISC microcontroller featuring 7.2KB FLASH memory and 192B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Offers 22 programmable I/O pins, 5 ADC channels, 2 PWM channels, and 3 timers. Supports I2C, SPI, USART, and UART interfaces. Packaged in a lead-free SSOP-28 surface-mount configuration, suitable for operation between -40°C and 85°C.
Frequency20MHz
PackageSSOP
Current600uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF873A-I/SS technical specifications.
General
Access Time
4us
Address Bus Width
8b
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Density
7KB
Frequency
20MHz
Height
1.75mm
Interface
I2C, SPI, USART, UART, SSP
Lead Free
Lead Free
Length
10.2mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
7.2KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
5
Number of Bits
8
Number of I/Os
22
Number of Programmable I/O
22
Number of PWM Channels
2
Number of Timers/Counters
3
Oscillator Type
External
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
192B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
600uA
Watchdog Timer
Yes
Width
5.3mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF873A-I/SS Datasheet
Download the complete datasheet for Microchip PIC16LF873A-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

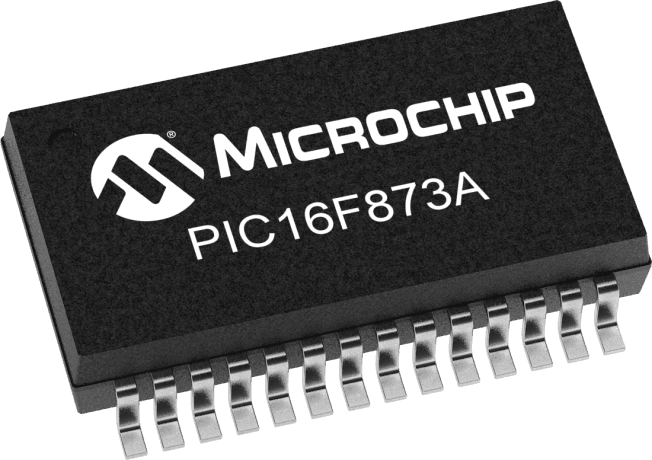

Product Images
