8-bit RISC Flash Microcontroller, operating at up to 20MHz, featuring 7.2KB of FLASH memory and 192B of RAM. This surface-mount device, housed in an SSOP-28 package, offers 22 programmable I/O pins and supports I2C, SPI, and USART interfaces. Includes 3 timers/counters, a watchdog timer, and peripherals like Brown-out Detect/Reset and POR. Operates from 2V to 5.5V with an access time of 4µs, suitable for temperatures from -40°C to 85°C.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF873AT-I/SS technical specifications.
General
Access Time
4us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
7.2KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of Programmable I/O
22
Number of Timers/Counters
3
Oscillator Type
External
Package Quantity
2100
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
192B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF873AT-I/SS Datasheet
Download the complete datasheet for Microchip PIC16LF873AT-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

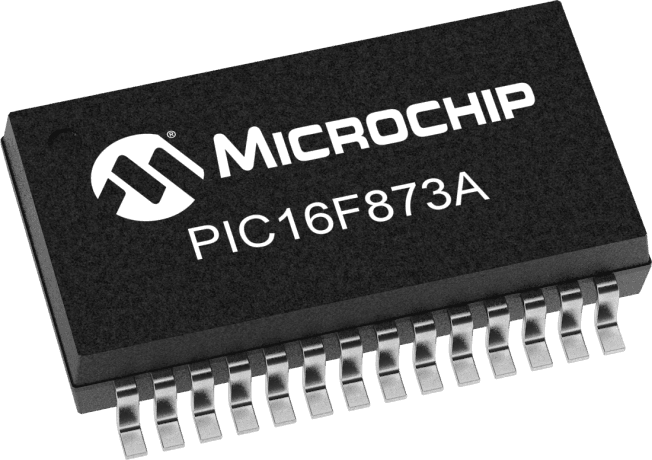

Product Images
