8-bit RISC microcontroller featuring 4MHz operation and 7KB FLASH memory. This integrated circuit offers 192B RAM, 33 programmable I/O pins, and 3 timers/counters. Interfaces include USART, I2C, and SPI, with peripherals such as Brown-out Detect/Reset and PWM. Operating from 2V to 5.5V, it supports an access time of 4µs and is housed in a PQFP44 package.
Frequency4MHz
PackageQFP
Quick Jump:
Technical Specifications
Microchip PIC16LF874-04I/PQ technical specifications.
General
Access Time
4us
Package/Case
QFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Interface
USART, I2C, SPI, UART
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH
Min Supply Voltage
2V
Number of Programmable I/O
33
Number of Timers/Counters
3
Oscillator Type
External
Package Quantity
96
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
192B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF874-04I/PQ Datasheet
Download the complete datasheet for Microchip PIC16LF874-04I/PQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

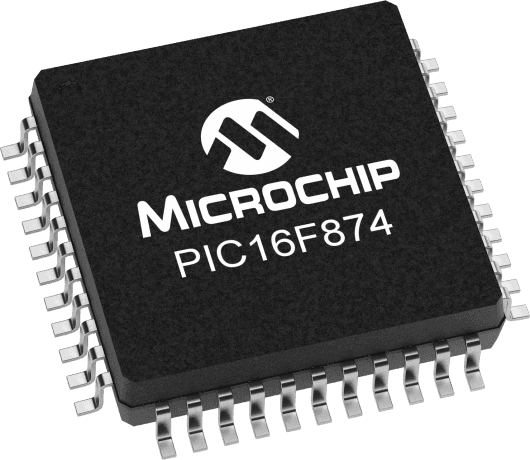

Product Images
