8-bit RISC microcontroller featuring 14.3KB FLASH memory and 368B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Supports I2C, SPI, and UART interfaces, with 22 programmable I/Os, 5 A/D channels, and 2 PWM channels. Includes peripherals like Brown-out Detect/Reset, POR, and WDT. Surface mountable in a 6x6mm QFN package, operating from 2V to 5.5V within a -40°C to 85°C temperature range.
Frequency20MHz
PackageQFN
Current600uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF876A-I/ML technical specifications.
General
| Access Time | 4us |
| Address Bus Width | 8b |
| Package/Case | QFN |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Height | 0.95mm |
| Interface | I2C, SPI, USART, UART |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 14.3KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 5 |
| Number of Bits | 8 |
| Number of Ethernet Channels | 1 |
| Number of I/Os | 22 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 22 |
| Number of PWM Channels | 2 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 1 |
| Oscillator Type | External |
| Package Quantity | 61 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 368B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 600uA |
| Watchdog Timer | Yes |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16LF876A-I/ML Datasheet
Download the complete datasheet for Microchip PIC16LF876A-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

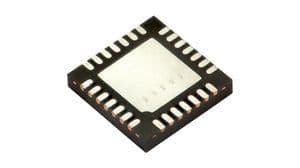

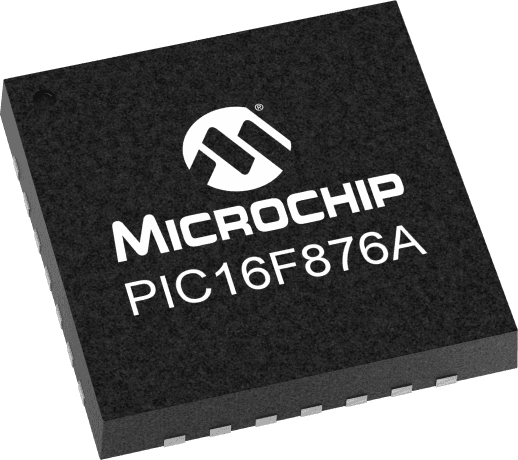

Product Images
