8-bit RISC microcontroller featuring FLASH memory, operating up to 20MHz. This surface mount device offers 22 programmable I/O pins, 3 timers/counters, and integrated peripherals including PWM and I2C. It supports I2C, SPI, and USART/UART interfaces, with 14.3KB of FLASH and 368B of RAM. Designed for a wide operating temperature range of -40°C to 85°C, it is RoHS compliant and lead-free.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF876AT-I/SS technical specifications.
General
Access Time
4us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
14.3KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of Programmable I/O
22
Number of Timers/Counters
3
Package Quantity
2100
Packaging
Tape and Reel
Peripherals
PWM, I2C
Radiation Hardening
No
RAM Size
368B
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF876AT-I/SS Datasheet
Download the complete datasheet for Microchip PIC16LF876AT-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

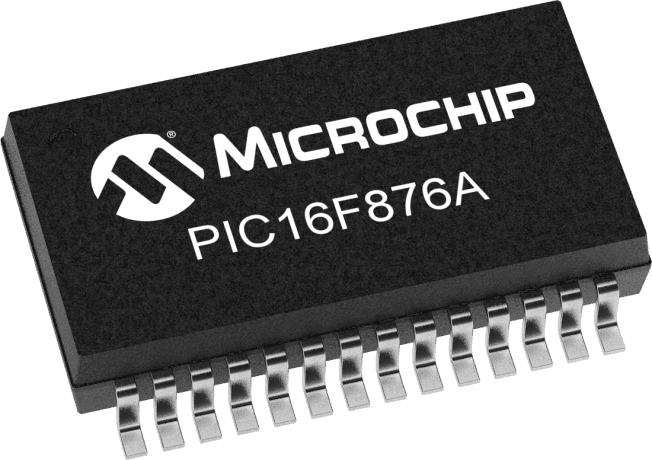

Product Images
