8-bit RISC microcontroller featuring FLASH memory and a 20MHz maximum operating frequency. This surface mount device offers 7KB of program memory, 368 bytes of RAM, and 16 programmable I/O pins. Integrated peripherals include POR, PWM, WDT, SSP, USART, I2C, SPI, and UART interfaces. Operating within a 2V to 5.5V supply voltage range, it supports a temperature range of -40°C to 85°C and is RoHS compliant.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF87T-I/SS technical specifications.
General
Access Time
20us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
SSP, USART, I2C, SPI, UART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of Programmable I/O
16
Number of Timers/Counters
3
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
POR, PWM, WDT
Radiation Hardening
No
RAM Size
368B
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF87T-I/SS Datasheet
Download the complete datasheet for Microchip PIC16LF87T-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

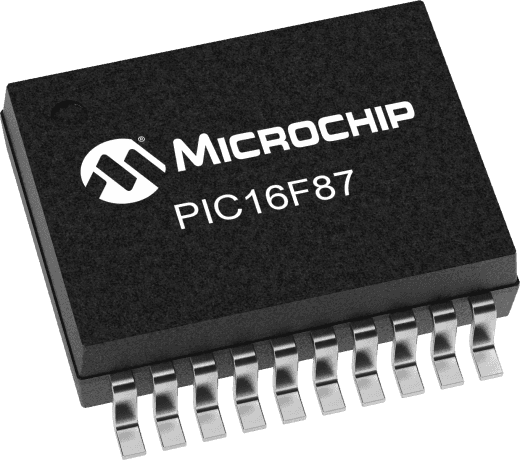

Product Images
