8-bit RISC microcontroller featuring 7KB FLASH memory and 368B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Offers 16 programmable I/O pins and multiple interfaces including SSP, USART, I2C, SPI, and UART. Includes a 10-bit A/D converter with 7 channels, 3 timers/counters, and a watchdog timer. Packaged in a lead-free SSOP-20 for surface mounting, with a wide operating temperature range of -40°C to 85°C.
Frequency20MHz
PackageSSOP
Current450uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF88-I/SS technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
1.85mm
Interface
SSP, USART, I2C, SPI, UART
Lead Free
Lead Free
Length
7.5mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
7
Number of Bits
8
Number of I/Os
16
Number of I2C Channels
1
Number of Programmable I/O
16
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
67
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
368B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
450uA
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF88-I/SS Datasheet
Download the complete datasheet for Microchip PIC16LF88-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

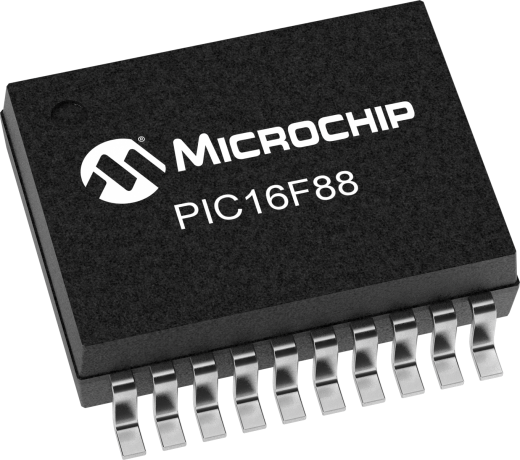

Product Images
