8-bit RISC microcontroller featuring a 16MHz clock speed and 32KB OTP memory. This TQFP-packaged MCU offers 50 programmable I/Os, 12 ADC channels, and supports I2C, SPI, RS-232, USART, SCI, and UART interfaces. Operating between 3.65V and 5.5V, it includes peripherals like Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. The component is lead-free and RoHS compliant, with a maximum power dissipation of 1W and an operating temperature range of 0°C to 70°C.
Frequency16MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC17C756A-16/PT technical specifications.
General
| Access Time | 16us |
| Package/Case | TQFP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 16MHz |
| Height | 1.05mm |
| Interface | I2C, SPI, RS-232, USART, SCI, UART |
| Lead Free | Lead Free |
| Length | 10.1mm |
| Max Frequency | 16MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Memory Size | 32KB |
| Memory Type | OTP |
| Min Supply Voltage | 3.65V |
| Number of ADC Channels | 12 |
| Number of I/Os | 50 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 50 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 4 |
| Oscillator Type | External |
| Package Quantity | 160 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 902B |
| RoHS Compliant | Yes |
| Series | PIC® 17C |
| Watchdog Timer | Yes |
| Width | 10.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC17C756A-16/PT Datasheet
Download the complete datasheet for Microchip PIC17C756A-16/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

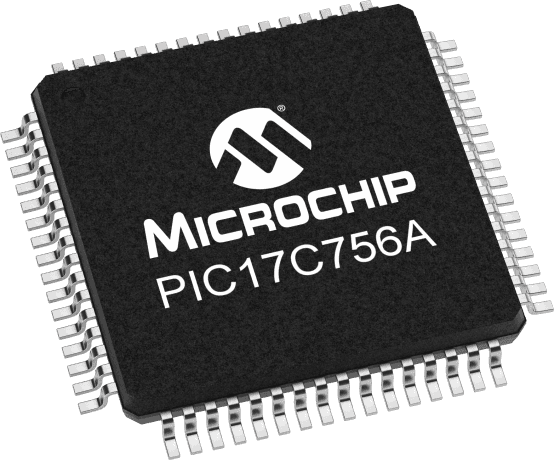

Product Images
