8-bit RISC microcontroller featuring 33MHz operation and 32KB EPROM/OTP memory. This surface-mount device offers 50 I/O pins, 12-channel 10-bit ADC, and multiple communication interfaces including I2C, SPI, RS-232, and UART. Integrated peripherals include a watchdog timer, POR, and 3 PWM channels. Operates from 4.5V to 5.5V with a temperature range of 0°C to 70°C.
Frequency33MHz
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC17C756A-33/L technical specifications.
General
Access Time
33us
Package/Case
PLCC
Core Architecture
PIC
Data Bus Width
8b
Frequency
33MHz
Height
3.68mm
Interface
I2C, SPI, RS-232, USART, SCI, UART
Lead Free
Lead Free
Length
24.33mm
Max Frequency
33MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
EPROM, , OTP
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
12
Number of Bits
8
Number of I/Os
50
Number of I2C Channels
1
Number of Programmable I/O
50
Number of PWM Channels
3
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
2
Oscillator Type
External
Package Quantity
19
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
902B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
24.33mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC17C756A-33/L Datasheet
Download the complete datasheet for Microchip PIC17C756A-33/L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

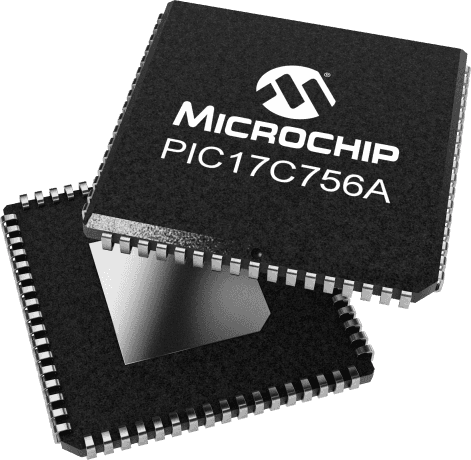

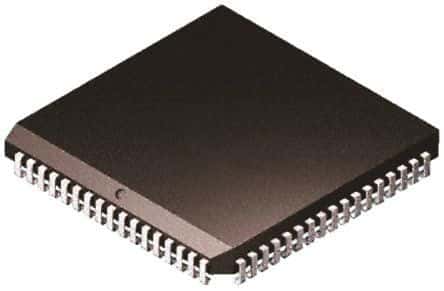

Product Images
