8-bit RISC microcontroller featuring a 33MHz clock speed and 32KB OTP memory. This integrated circuit offers 50 programmable I/O pins and supports I2C, SPI, RS-232, USART, SCI, and UART interfaces. Operating from a 4.5V to 5.5V supply, it includes 4 timers/counters and peripherals such as Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Packaged in PLCC, this lead-free and RoHS compliant component is suitable for operation between 0°C and 70°C.
Frequency33MHz
PackagePLCC
Quick Jump:
Technical Specifications
Microchip PIC17C756AT-33/L technical specifications.
General
| Access Time | 33us |
| Package/Case | PLCC |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 33MHz |
| Interface | I2C, SPI, RS-232, USART, SCI, UART |
| Lead Free | Lead Free |
| Max Frequency | 33MHz |
| Max Operating Temperature | 70°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Memory Size | 32KB |
| Memory Type | OTP |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Number of I/Os | 50 |
| Number of Programmable I/O | 50 |
| Number of Timers/Counters | 4 |
| Operating Supply Voltage | 5V |
| Oscillator Type | External |
| Package Quantity | 300 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 902B |
| RoHS Compliant | Yes |
| Series | PIC® 17C |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC17C756AT-33/L Datasheet
Download the complete datasheet for Microchip PIC17C756AT-33/L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

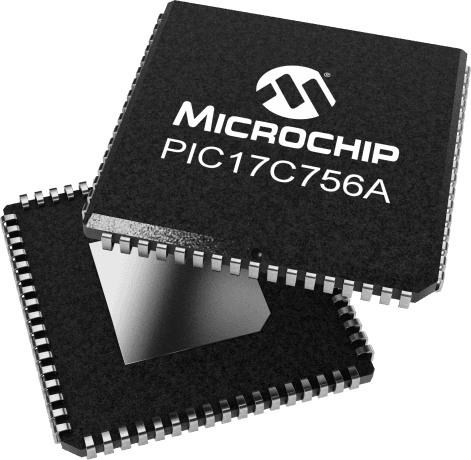

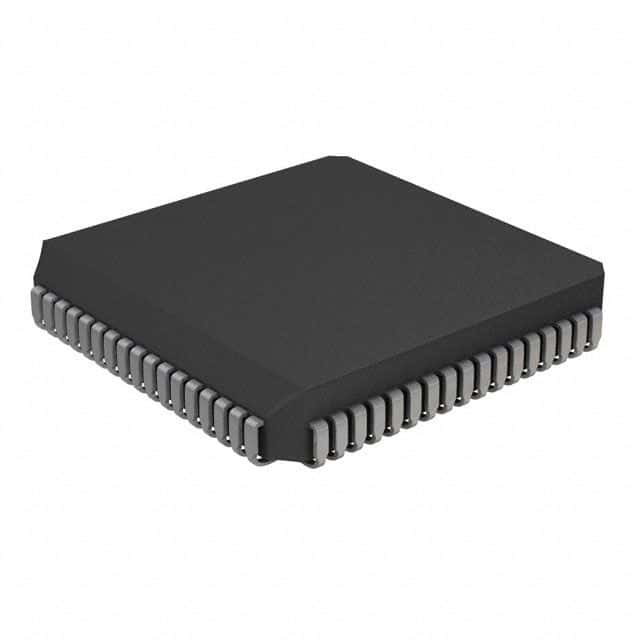

Product Images
