8-bit RISC microcontroller featuring 32KB EPROM/OTP memory and 902B RAM. Operates at up to 16MHz with an 8-bit data bus. Supports I2C, SPI, RS-232, USART, SCI, and UART interfaces. Includes 8 timers/counters, 66 programmable I/O pins, and peripherals like Brown-out Detect/Reset, POR, PWM, and WDT. Packaged in a PLCC (PQCC84) for surface mounting, with an operating temperature range of -40°C to 125°C and a maximum supply voltage of 5.5V.
Frequency16MHz
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC17C766-16E/L technical specifications.
General
Access Time
16us
Package/Case
PLCC
Core Architecture
PIC
Data Bus Width
8b
Interface
I2C, SPI, RS-232, USART, SCI, UART
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
EPROM, , OTP
Min Supply Voltage
3.65V
Mount
Surface Mount
Number of Programmable I/O
66
Number of Timers/Counters
8
Oscillator Type
External
Package Quantity
16
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
902B
RoHS Compliant
Yes
Series
PIC® 17C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC17C766-16E/L Datasheet
Download the complete datasheet for Microchip PIC17C766-16E/L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

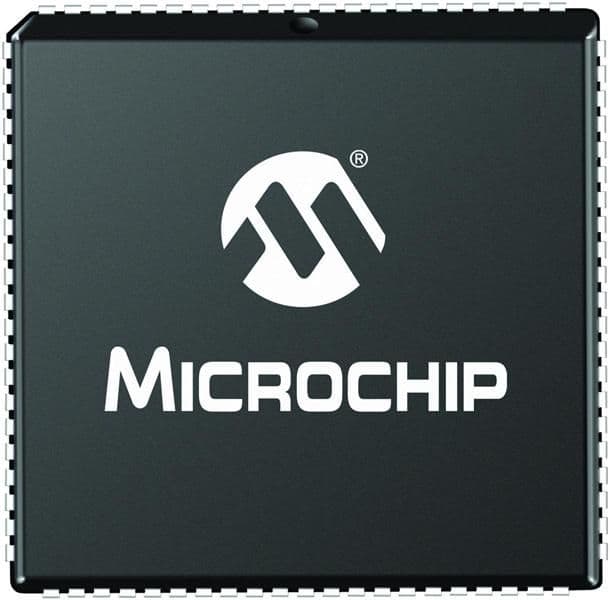

Product Images
