8-bit RISC microcontroller featuring a PIC core architecture, operating at a maximum frequency of 40MHz. This surface mount device offers 32KB of OTP/EPROM memory and 1536B of RAM, with 68 programmable I/O pins. Integrated interfaces include I2C, SPI, CAN, USART, 3-wire, and UART. The component supports a supply voltage range of 4.2V to 5.5V and operates across an extended temperature range of -40°C to 125°C. Peripherals include Brown-out Detect/Reset, POR, PWM, WDT, and LVD.
Frequency40MHz
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18C858-E/L technical specifications.
General
| Access Time | 40us |
| Package/Case | PLCC |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Interface | I2C, SPI, CAN, USART, 3-WIRE, UART |
| Lead Free | Lead Free |
| Max Frequency | 40MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Memory Size | 32KB |
| Memory Type | EPROM, , OTP |
| Min Supply Voltage | 4.2V |
| Mount | Surface Mount |
| Number of Programmable I/O | 68 |
| Number of Timers/Counters | 4 |
| Oscillator Type | External |
| Package Quantity | 16 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, LVD |
| Radiation Hardening | No |
| RAM Size | 1536B |
| RoHS Compliant | Yes |
| Series | PIC® 18C |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC18C858-E/L Datasheet
Download the complete datasheet for Microchip PIC18C858-E/L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

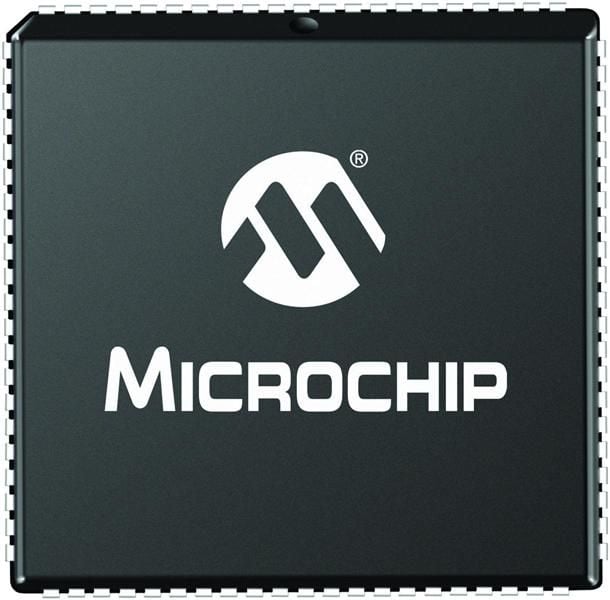

Product Images
