8-bit Flash Microcontroller, operating at 40MHz, featuring an 8-bit data bus and 256B RAM. This surface mount SOIC-18 package offers 16 programmable I/O pins, 2 timers/counters, and integrated peripherals including UART, USART, PWM, and Watchdog Timer. With a wide operating temperature range of -40°C to 85°C and a maximum supply voltage of 5.5V, it supports internal oscillator type and is RoHS compliant.
Frequency40MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F1330T-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Interface
UART, USART
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
8KB
Memory Type
FLASH,
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of Programmable I/O
16
Number of Timers/Counters
2
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
1100
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
PIC® 18F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F1330T-I/SO Datasheet
Download the complete datasheet for Microchip PIC18F1330T-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

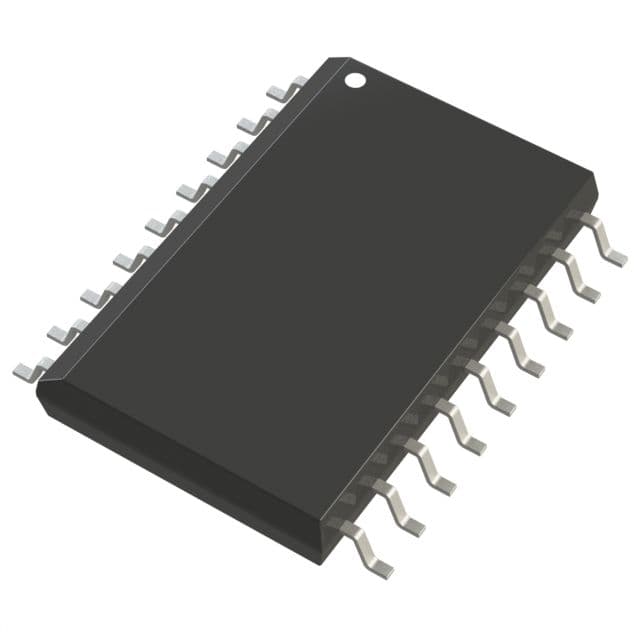

Product Images
