8-bit RISC microcontroller featuring 8KB FLASH memory and 256B RAM. Operates at up to 64MHz with 17 I/O pins, including 18 programmable I/O. Supports I2C, SPI, and UART/USART interfaces. Includes 4 timers/counters, internal oscillator, and peripherals like PWM, WDT, and Brown-out Detect. Offered in a lead-free, SOIC package for surface mounting, with an operating temperature range of -40°C to 125°C.
Frequency64MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F13K22-E/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
64MHz
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
64MHz
Max Operating Temperature
125°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of I/Os
17
Number of Programmable I/O
18
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
38
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
PIC® XLP™ 18K
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F13K22-E/SO Datasheet
Download the complete datasheet for Microchip PIC18F13K22-E/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

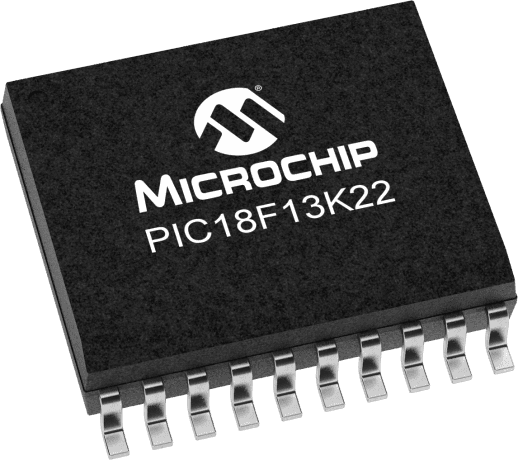

Product Images
