8-bit FLASH microcontroller featuring an 8KB memory density and operating at up to 48MHz. This PIC microcontroller offers 14 I/O pins, including 15 programmable I/O, and supports I2C, SPI, USB, and UART interfaces. With 11 A/D converter channels, 4 timers/counters, and integrated peripherals like PWM and a watchdog timer, it is suitable for surface mount applications in a 20-pin SSOP package. Operating from 2.7V to 5.5V, this RoHS compliant component functions within a -40°C to 85°C temperature range.
Frequency48MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F13K50-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Density
8KB
Frequency
48MHz
Height
1.85mm
Interface
I2C, SPI, USB, UART, USART
Lead Free
Lead Free
Length
7.5mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
11
Number of Bits
8
Number of I/Os
14
Number of I2C Channels
1
Number of Programmable I/O
15
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
67
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 18K
Termination
SMD/SMT
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F13K50-I/SS Datasheet
Download the complete datasheet for Microchip PIC18F13K50-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

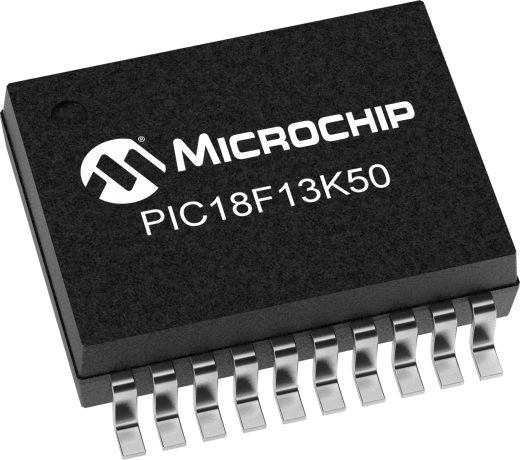

Product Images
