8-bit RISC microcontroller featuring 16KB FLASH memory and 512B RAM. Operates at up to 64MHz with 17 I/O pins, including 18 programmable I/O. Supports I2C, SPI, and UART/USART interfaces, with 4 timers/counters and internal oscillator. Packaged in a 20-pin SOIC surface mount case, it operates from 2.7V to 5.5V and is RoHS compliant.
Frequency64MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F14K22-E/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
64MHz
Interface
I2C, SPI, UART, USART
Max Frequency
64MHz
Max Operating Temperature
125°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of I/Os
17
Number of Programmable I/O
18
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
38
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® XLP™ 18K
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F14K22-E/SO Datasheet
Download the complete datasheet for Microchip PIC18F14K22-E/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

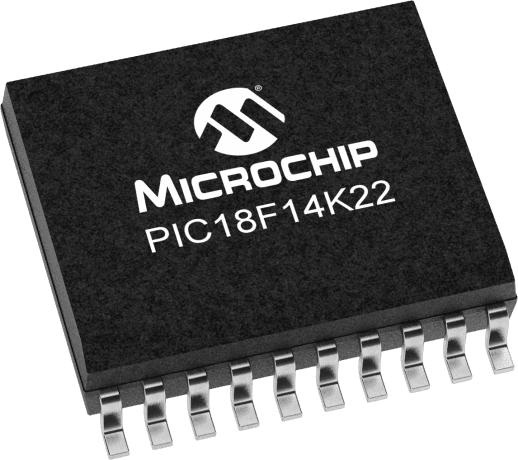

Product Images
