8-bit FLASH microcontroller featuring an 8b data bus and a maximum operating frequency of 48MHz. This surface mount device offers 16KB of FLASH memory and 768B of RAM, with 14 I/Os including 15 programmable I/O pins. Integrated peripherals include I2C, SPI, USB, UART, USART, 11 A/D converter channels, and 4 timers/counters. Packaged in a 20-pin SSOP, this RoHS compliant component operates from 2.7V to 5.5V.
Frequency48MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F14K50-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Density
16KB
Frequency
48MHz
Height
1.85mm
Interface
I2C, SPI, USB, UART, USART
Lead Free
Lead Free
Length
7.5mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
11
Number of Bits
8
Number of I/Os
14
Number of I2C Channels
1
Number of Programmable I/O
15
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
67
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
768B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 18K
Termination
SMD/SMT
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F14K50-I/SS Datasheet
Download the complete datasheet for Microchip PIC18F14K50-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

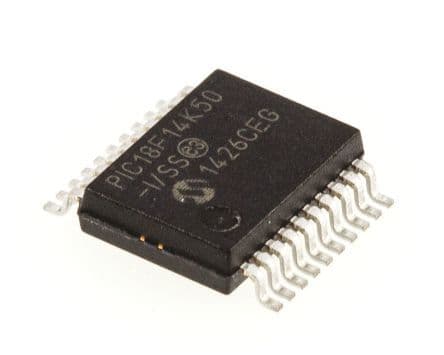

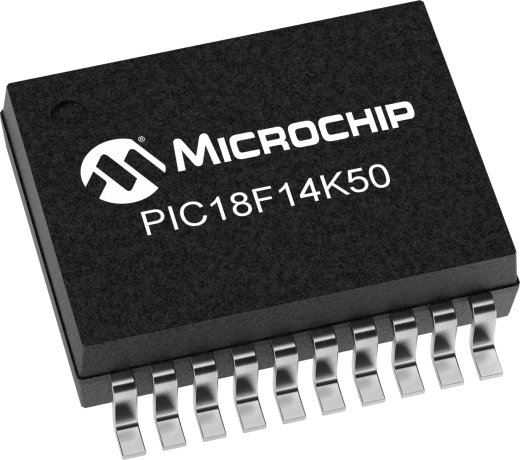

Product Images
